UK-based medical device manufacturer F1630 Standard Single Flowmeter Rail Mounted Oxygen 0-15lpm
Designed around the needs of Healthcare and Emergency Service Providers, Oxylitre's range of Standard Medical Pipeline Flowmeters are the Flowmeter of choice for delivering flexible solutions. Our Standard Medical Pipeline Flowmeter Range have a long and exemplary history, simple to use, reliable and extremely functional, our Standard Medical Pipeline Flowmeters offer high performance with durability engineered in to the robust design.
Oxylitre's range of Standard Medical Pipeline Flowmeters are dependable, extremely easy to maintain with a long service life and a 7 year warranty.
Specification
- Oxygen
- Brass Chrome Plated Body
- NOT MRI Conditional
- 9/16 UNF Fitting
- 4 bar nominal pressure
- BS Colour Fine adjustment Control
- Tubing Nipple
- 0-15Lpm (O₂)
- Complete with Universal Rail Clamp
- 1.5 Metre BS Coloured Hose and Probe
Compare all seven models in this range
Accessories & Related Products
All seven models
Standard Rail Mounted Medical Gas Pipeline Flowmeters product codes
Find the code you need by configuration and by gas and flow.
Common to all seven models
- Brass Chrome Plated Body
- NOT MRI Conditional
- 9/16 UNF Fitting
- 4 bar nominal pressure
- BS Colour Fine adjustment Control
- Complete with Universal Rail Clamp
- 1.5 Metre BS Coloured Hose and Probe
| Model | Configuration | Gas and flow | Specification | Actions |
|---|---|---|---|---|

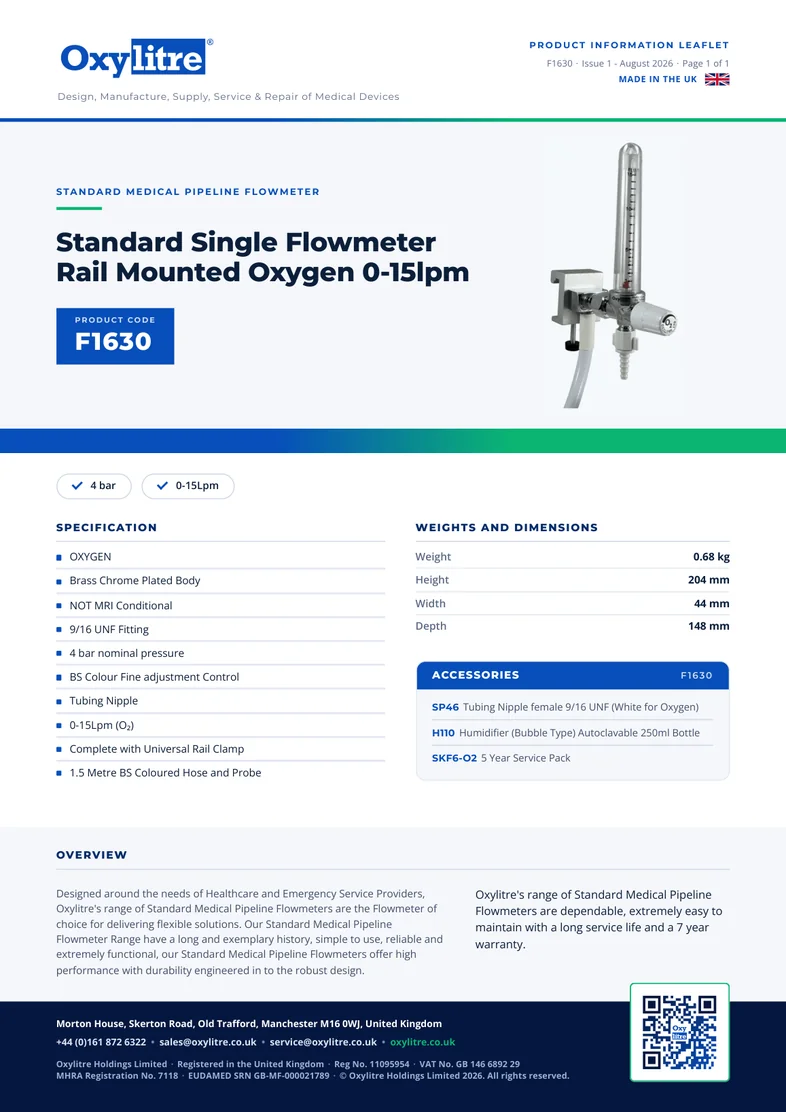

F1630 Standard Single Flowmeter Rail Mounted Oxygen 0-15lpm  | Single | Oxygen 0-15 |
| F1630 Product sheet (PDF) |

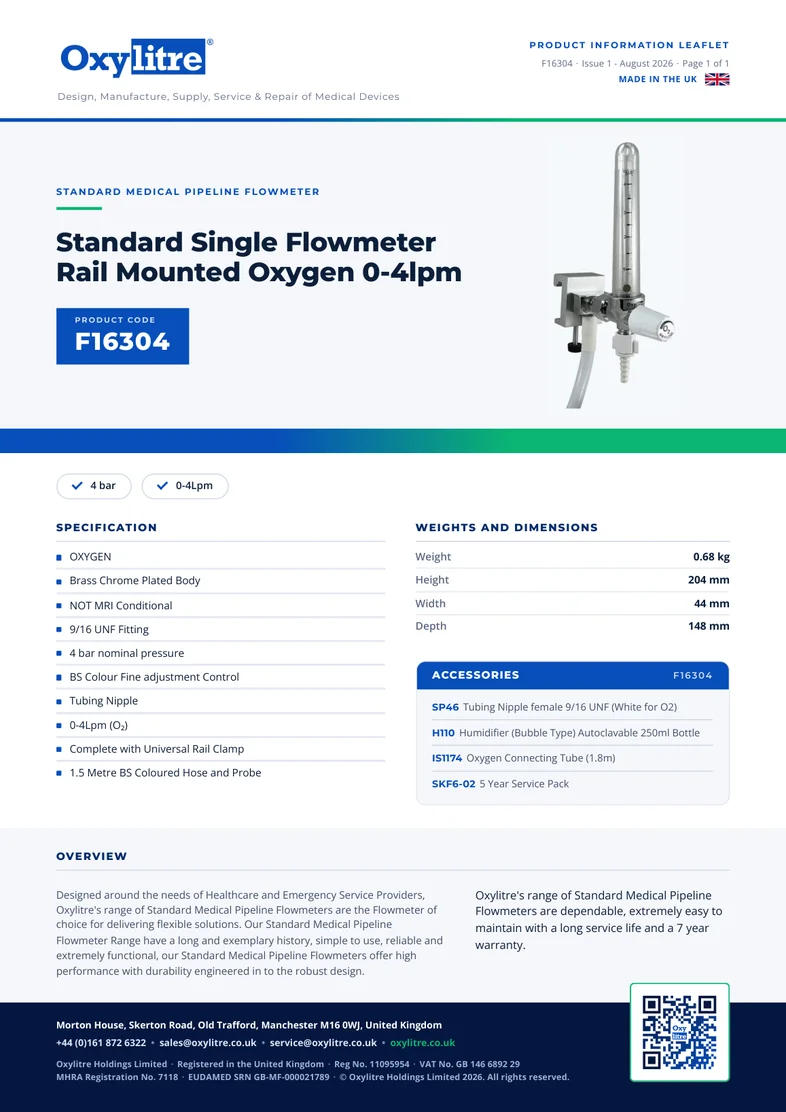

F16304 Standard Single Flowmeter Rail Mounted Oxygen 0-4lpm  | Single | Oxygen 0-4 |
| F16304 Product sheet (PDF) |

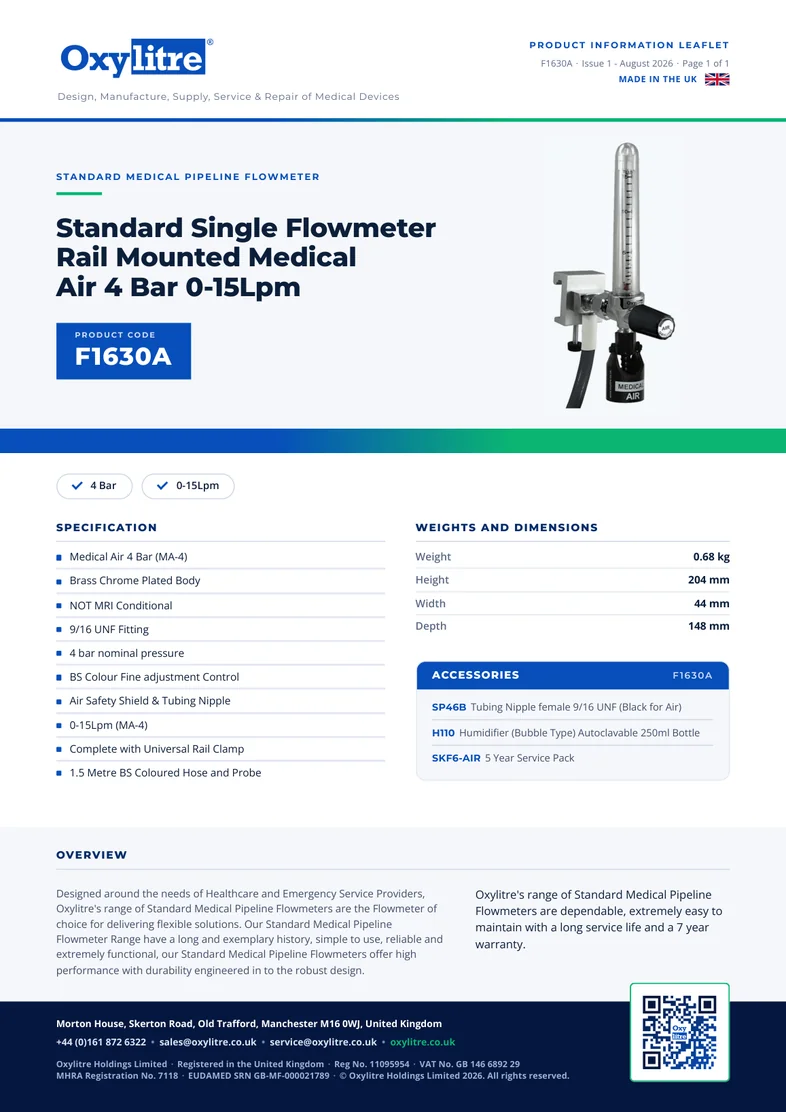

F1630A Standard Single Flowmeter Rail Mounted Medical Air 4 Bar 0-15Lpm  | Single | Air 0-15 |
| F1630A Product sheet (PDF) |

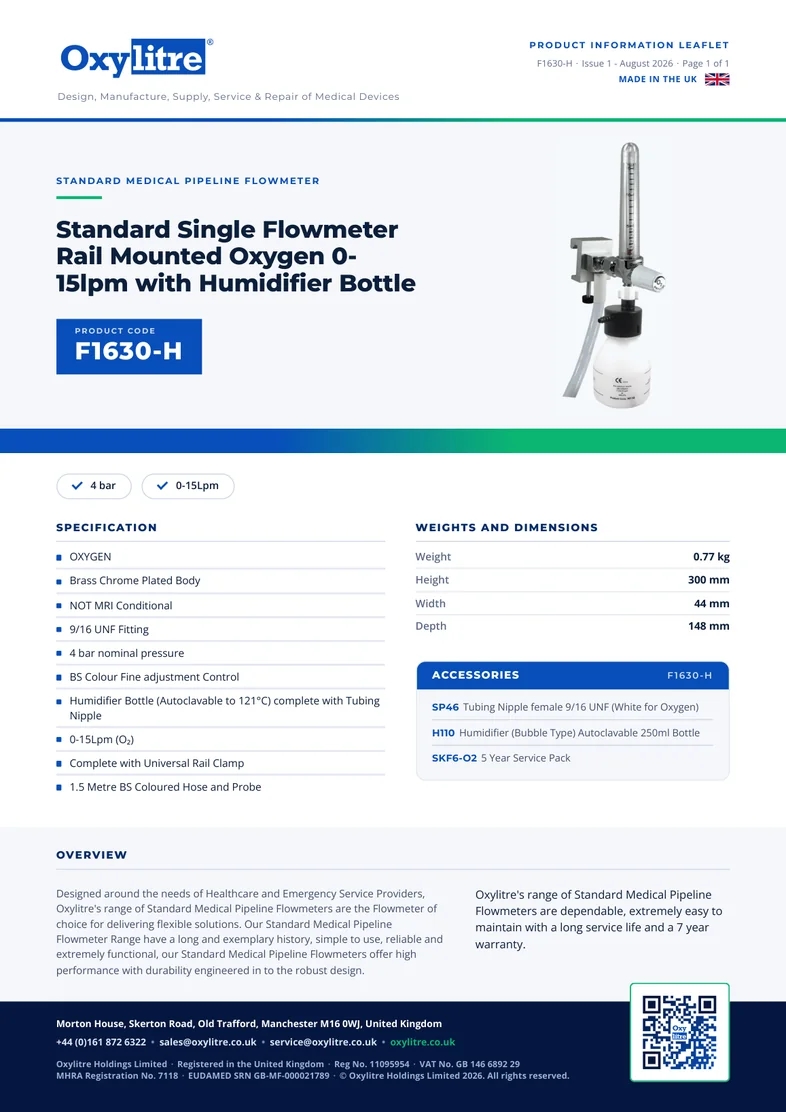

F1630-H Standard Single Flowmeter Rail Mounted Oxygen 0-15lpm with Humidifier Bottle  | Single | Oxygen 0-15 + Humidifier |
| F1630-H Product sheet (PDF) |

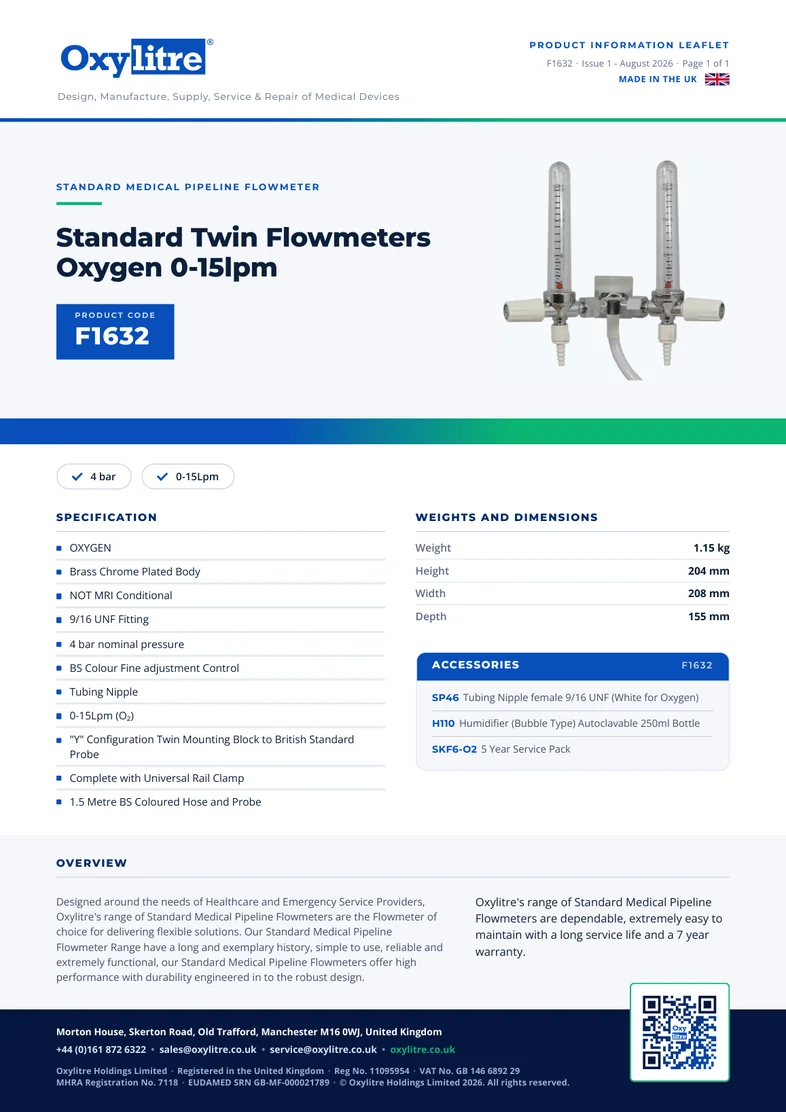

F1632 Standard Twin Flowmeters Oxygen 0-15lpm  | Twin | Oxygen 0-15 |
| F1632 Product sheet (PDF) |

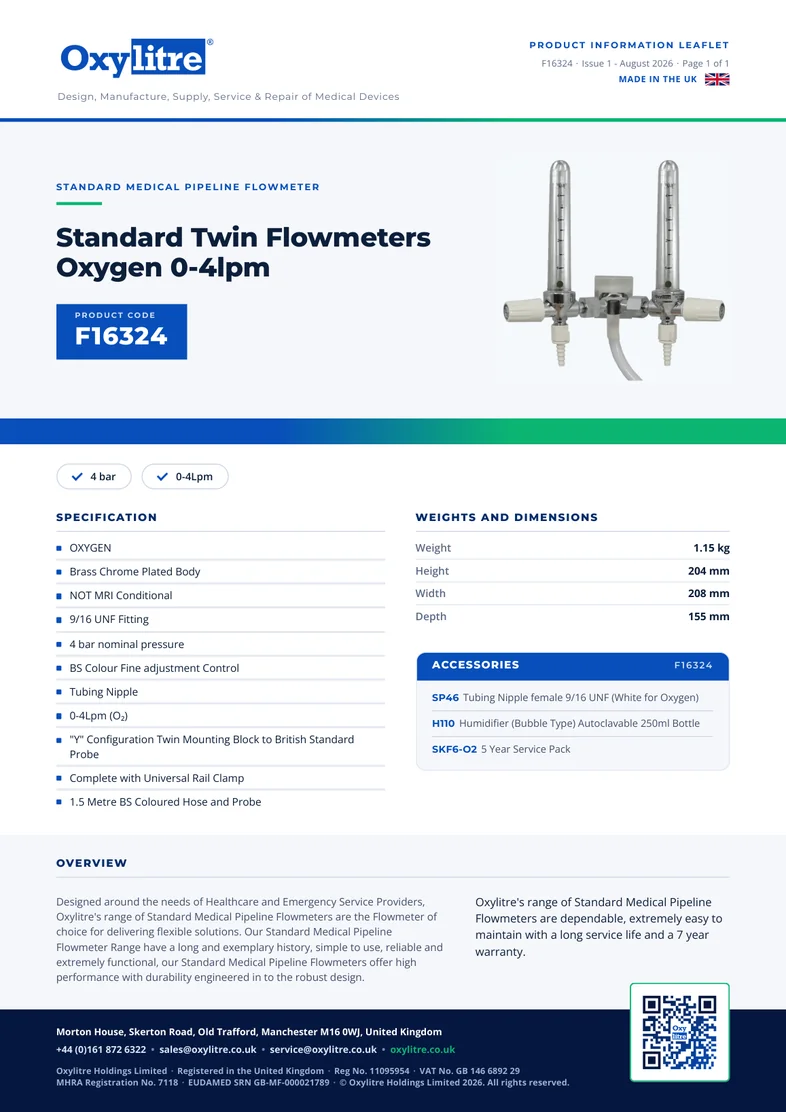

F16324 Standard Twin Flowmeters Oxygen 0-4lpm  | Twin | Oxygen 0-4 |
| F16324 Product sheet (PDF) |

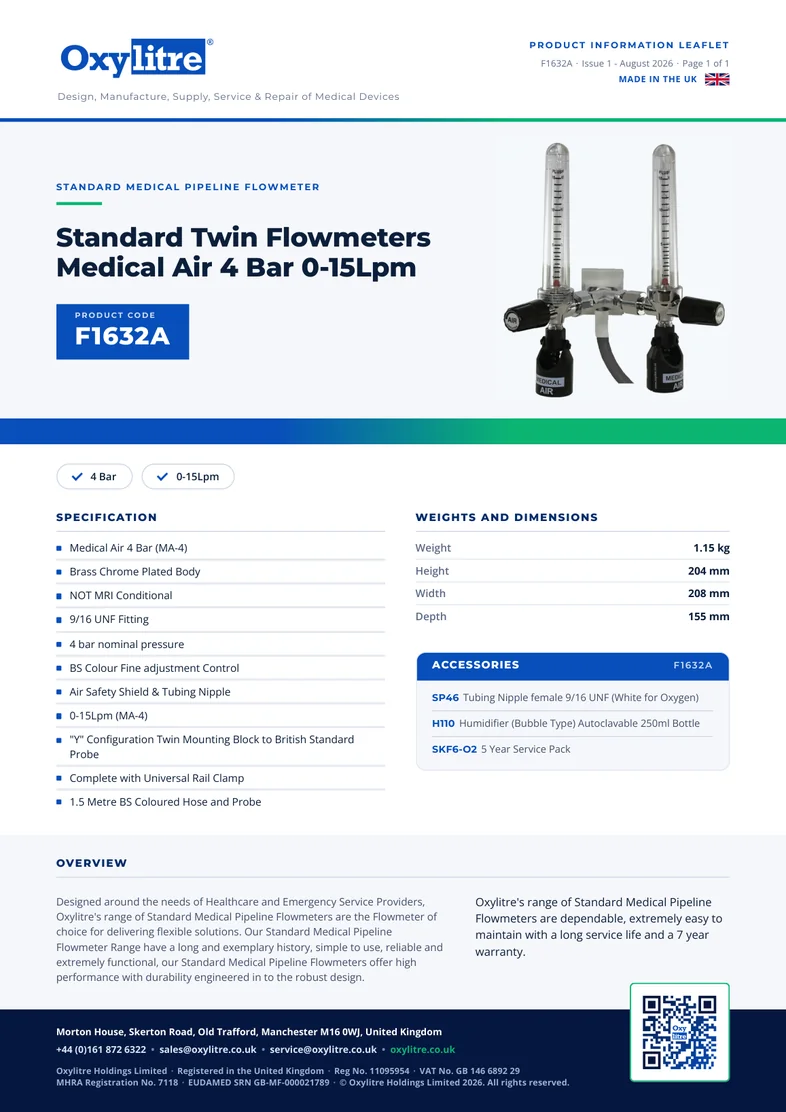

F1632A Standard Twin Flowmeters Medical Air 4 Bar 0-15Lpm  | Twin | Air 0-15 |
| F1632A Product sheet (PDF) |
As per the eIFU Regulation (EU) 2021/2226 you can find a copy of previous IFU versions at the bottom of our IFU Downloads page.
If you wish to receive a paper copy of an IFU please send an email to sales@oxylitre.co.uk with your request or use the contact forms on our website.
