UK-based medical device manufacturer
N20MSS Mobile N2O Support System

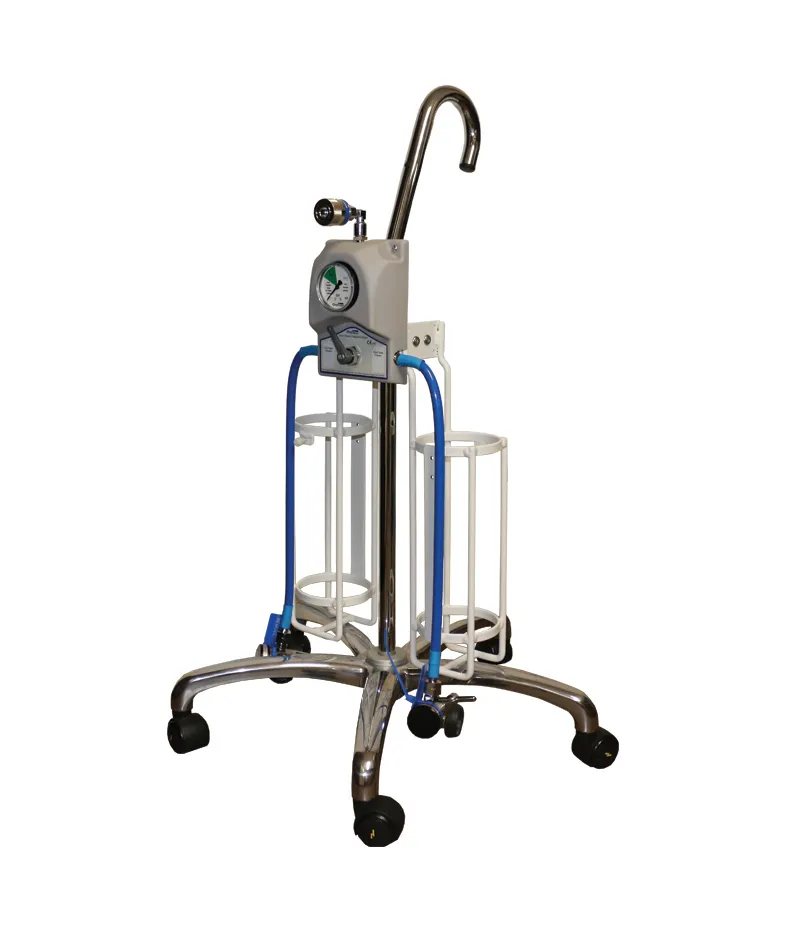

Oxylitre’s Mobile N2O Support System is a self-contained, mobile nitrous oxide supply for use where a piped gas supply is not available. It is built around twin "E" size cylinder cradles on a star trolley base for stability, with a manual twin cylinder change-over system so an empty cylinder can be switched to the reserve without interrupting the supply.
Gas is delivered through a BS gas-indexed self-sealing valve and two pre-set, pin-index N2O regulators. For full warranty terms please see our terms & conditions.
Specification
- For Nitrous Oxide (N2O)
- Twin "E" size cylinder cradles
- Star trolley base for stability
- Manual twin cylinder change-over system
- BS gas-indexed self-sealing valve
- 2 × pre-set N2O regulators, pin index fitting
Dimensions & Weights
- Height: 940 mm
- Width: 600 mm
- Depth: 600 mm
- Weight: 10 kg (approx)
