UK-based medical device manufacturer F2602 Compact Twin 'Y' Configuration Flowmeters Oxygen 0-15lpm
Oxylitre's range of Compact Medical Pipeline Flowmeters are the Flowmeter of choice for delivering flexible solutions. Our Compact Medical Pipeline Flowmeter Range are simple to use, reliable and extremely functional, our Compact Medical Pipeline Flowmeters offer high performance with durability engineered in to the robust design.
Oxylitre's range of Compact Medical Pipeline Flowmeters are dependable, extremely easy to maintain with a long service life and a 7 year warranty.
Specification
- Oxygen
- Moulded BS Colour Coded Body
- NOT MRI Conditional
- "Y" Configuration Twin Mounting Block to British Standard Probe
- 9/16 UNF Fitting
- 4 bar nominal pressure
- BS Colour Fine adjustment Control
- Tubing Nipple
- 0-15Lpm (O₂)
Compare all five models in this range
Accessories & Related Products
All five models
Compact Twin 'Y' Configuration Medical Gas Pipeline Flowmeters product codes
Find the code you need by mounting block connection and by gas and flow.
Common to all five models
- Moulded BS Colour Coded Body
- NOT MRI Conditional
- 9/16 UNF Fitting
- 4 bar nominal pressure
- BS Colour Fine adjustment Control
| Model | Mounting block connection | Gas and flow | Specification | Actions |
|---|---|---|---|---|

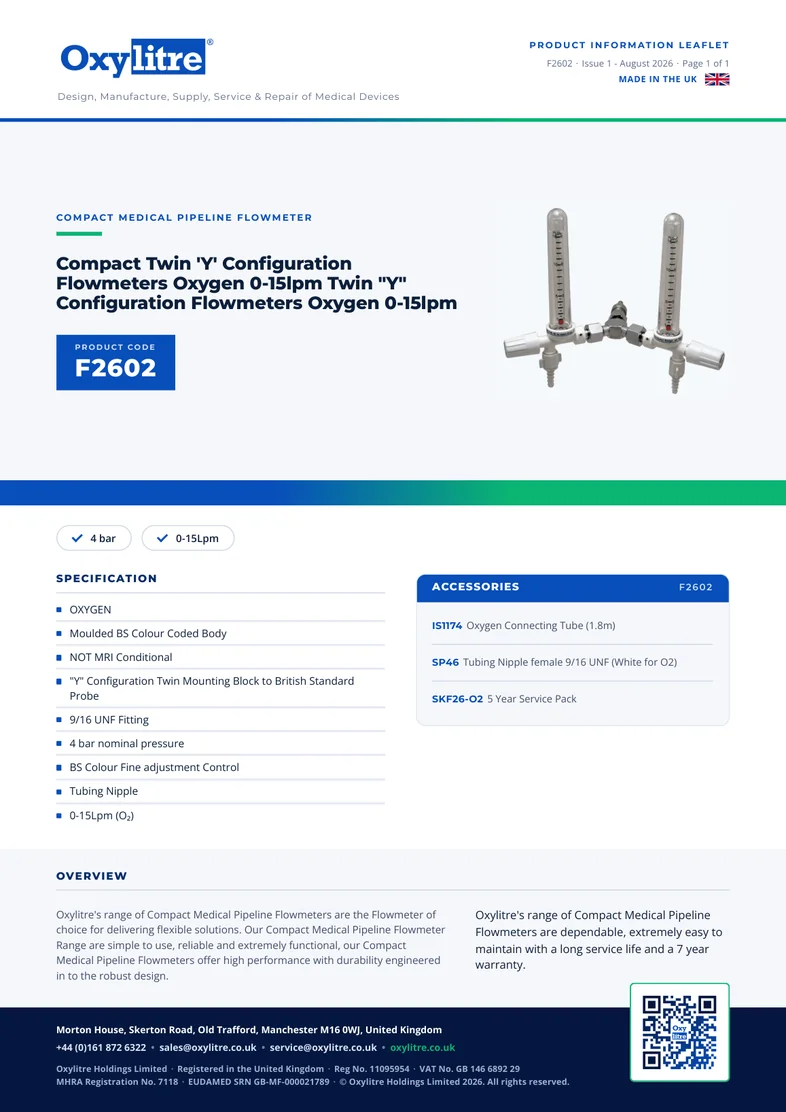

F2602 Compact Twin "Y" Configuration Flowmeters Oxygen 0-15lpm  | To British Standard Probe | Oxygen 0-15 |
| F2602 Product sheet (PDF) |

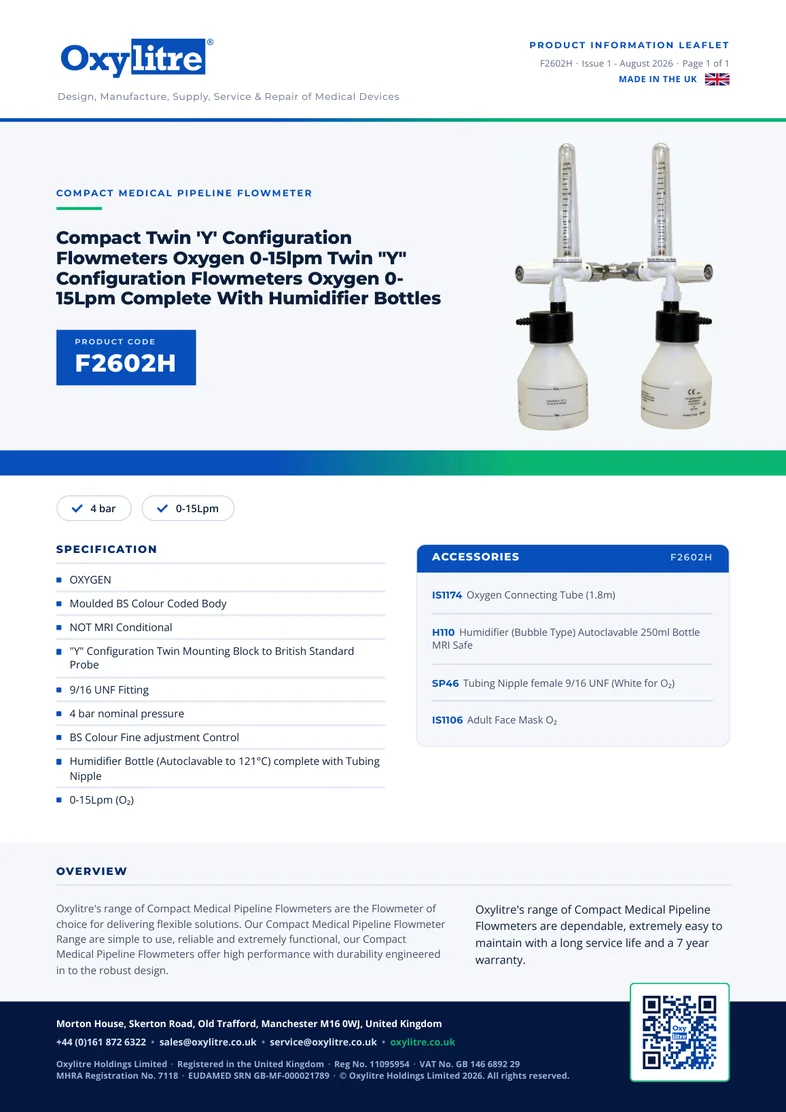

F2602H Compact Twin "Y" Configuration Flowmeters Oxygen 0-15Lpm Complete With Humidifier Bottles  | To British Standard Probe | Oxygen 0-15 + Humidifier |
| F2602H Product sheet (PDF) |

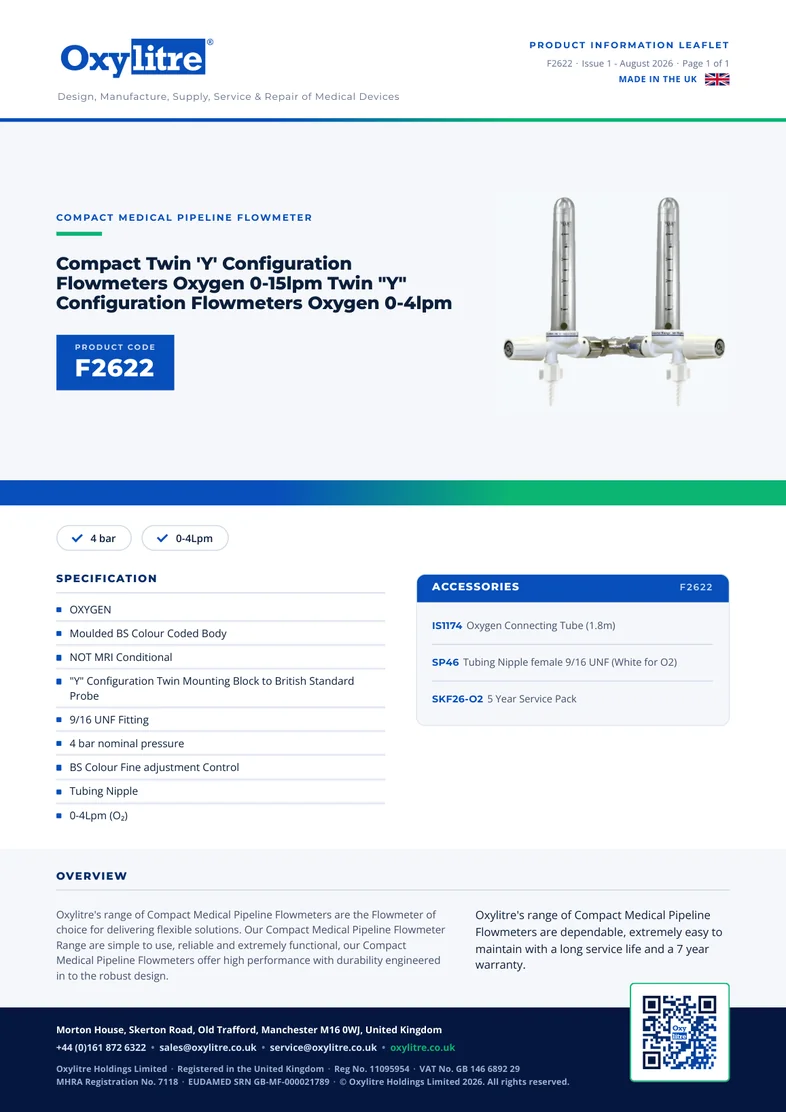

F2622 Compact Twin "Y" Configuration Flowmeters Oxygen 0-4lpm  | To British Standard Probe | Oxygen 0-4 |
| F2622 Product sheet (PDF) |

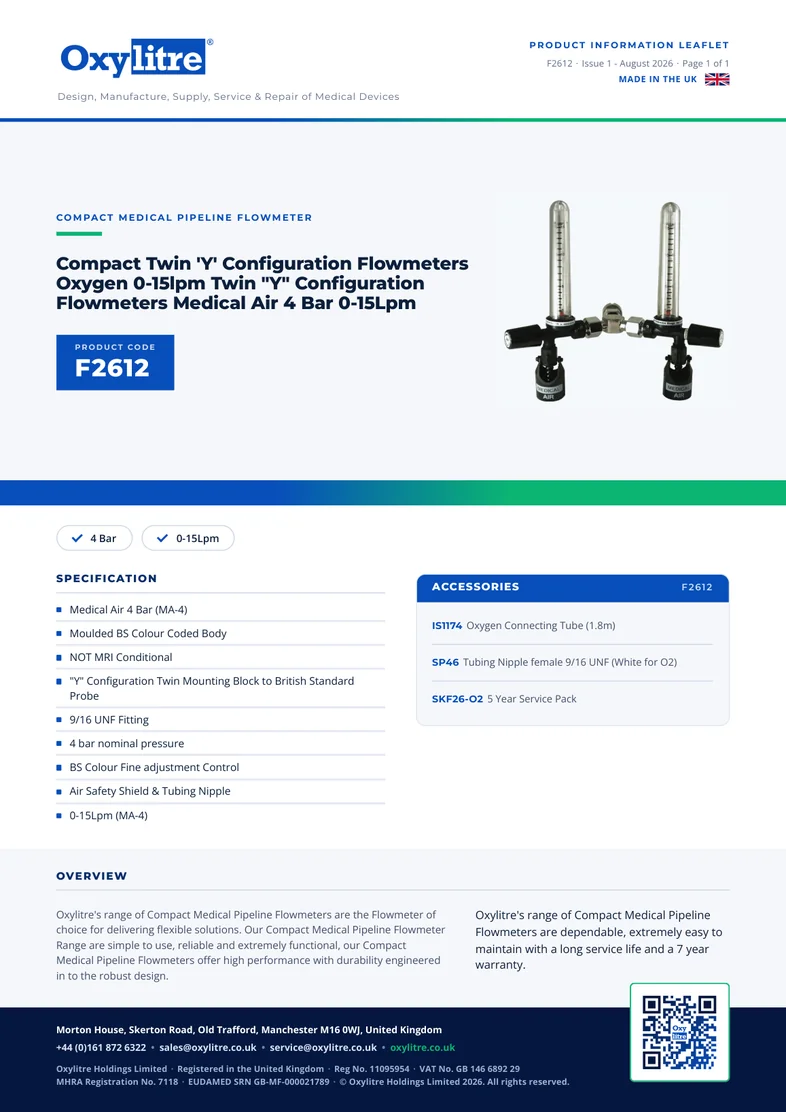

F2612 Compact Twin "Y" Configuration Flowmeters Medical Air 4 Bar 0-15Lpm  | To British Standard Probe | Air 0-15 |
| F2612 Product sheet (PDF) |

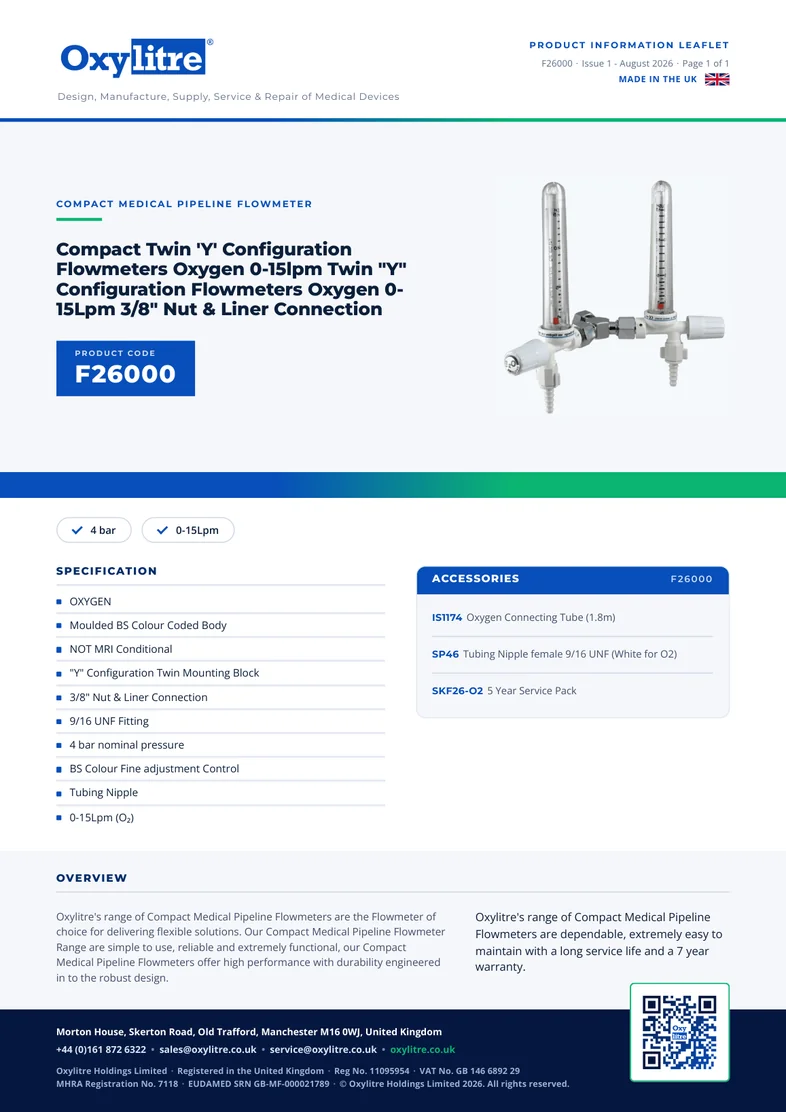

F26000 Compact Twin "Y" Configuration Flowmeters Oxygen 0-15Lpm 3/8" Nut & Liner Connection  | Without Probe (3/8" Nut & Liner) | Twin O₂ 0-15 |
| F26000 Product sheet (PDF) |
As per the eIFU Regulation (EU) 2021/2226 you can find a copy of previous IFU versions at the bottom of our IFU Downloads page.
If you wish to receive a paper copy of an IFU please send an email to sales@oxylitre.co.uk with your request or use the contact forms on our website.
